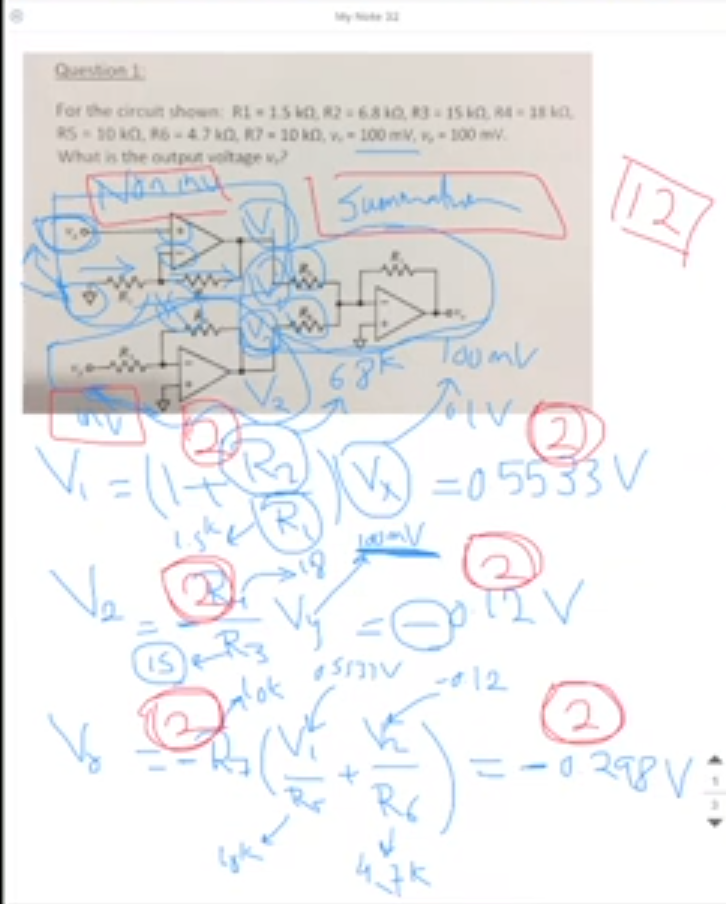

09:01 Using Op-Amp Circuits

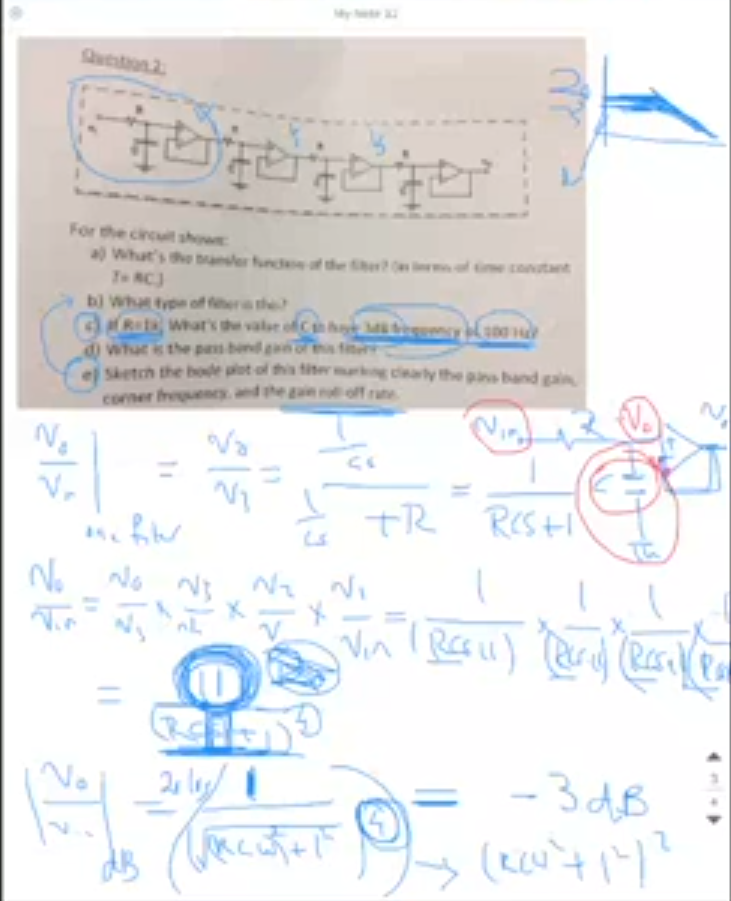

15:34 Cascaded with simple voltage divider
- Put on the circuit
- Notice voltage divider
- Gain is the factor multiplied by the transfer function (in an active filter, there are two elements: filtering element, which is the transfer function, and the gain element which amplifies the signal)
