Tutorial 6 - Transmission Shafts Part 2

---

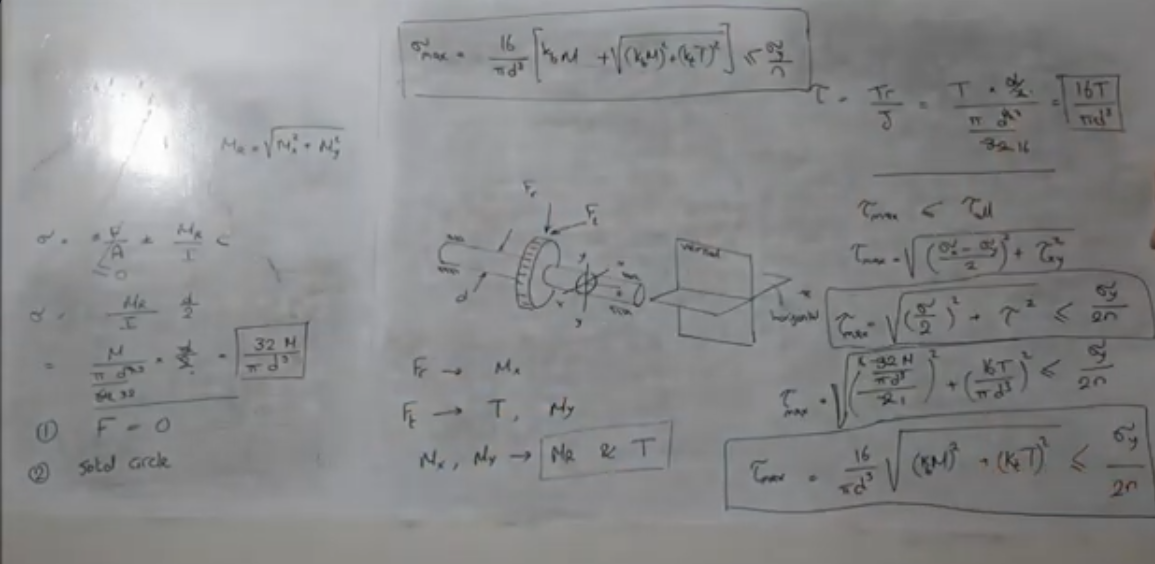

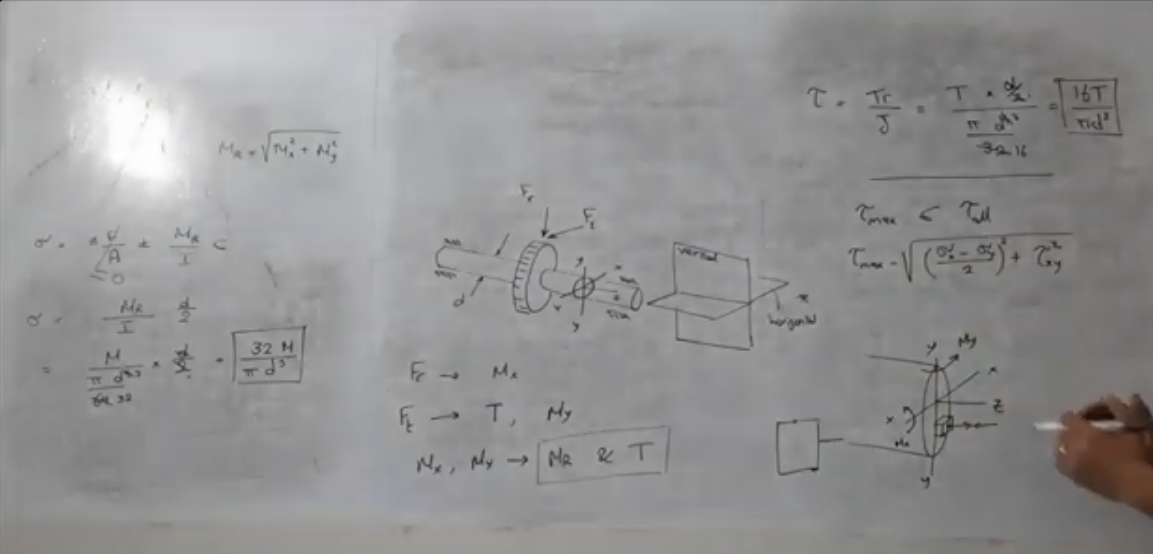

01:06 What to do with forces on transmission shaft? How to calculate stresses?

• Shock and Fatigue Factors
  • If not given, assume gradually applied load thus $k_b=k_t=1$

---

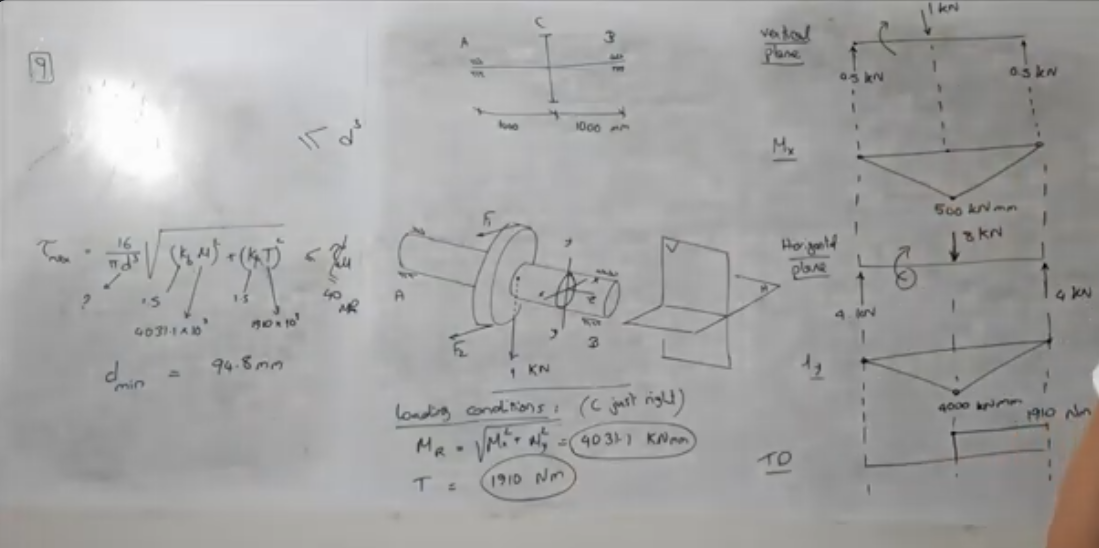

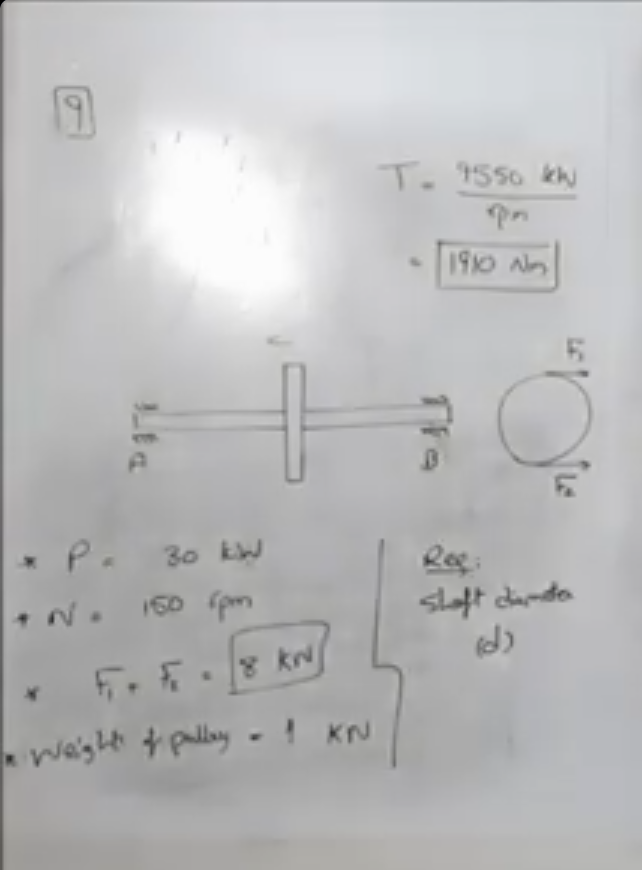

22:16 Problem 9

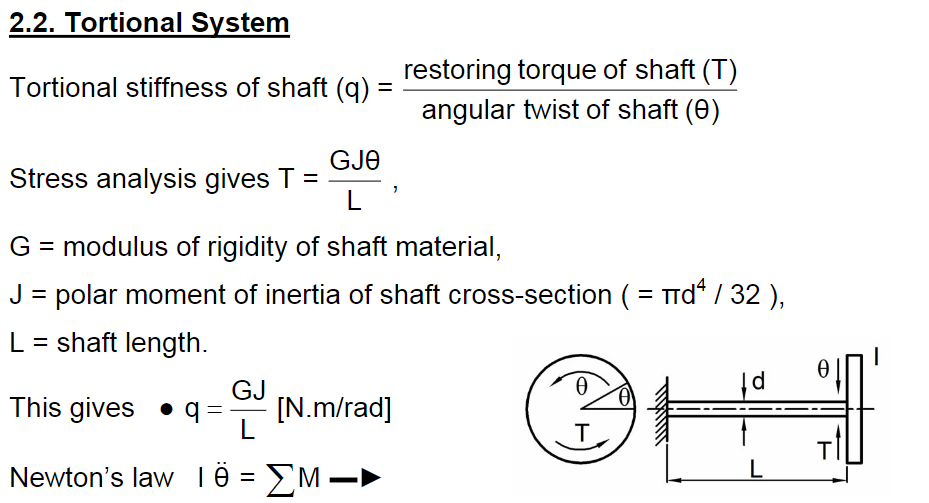

Torsional stiffness Thus,

$\theta =\sum \frac{T}{q}$

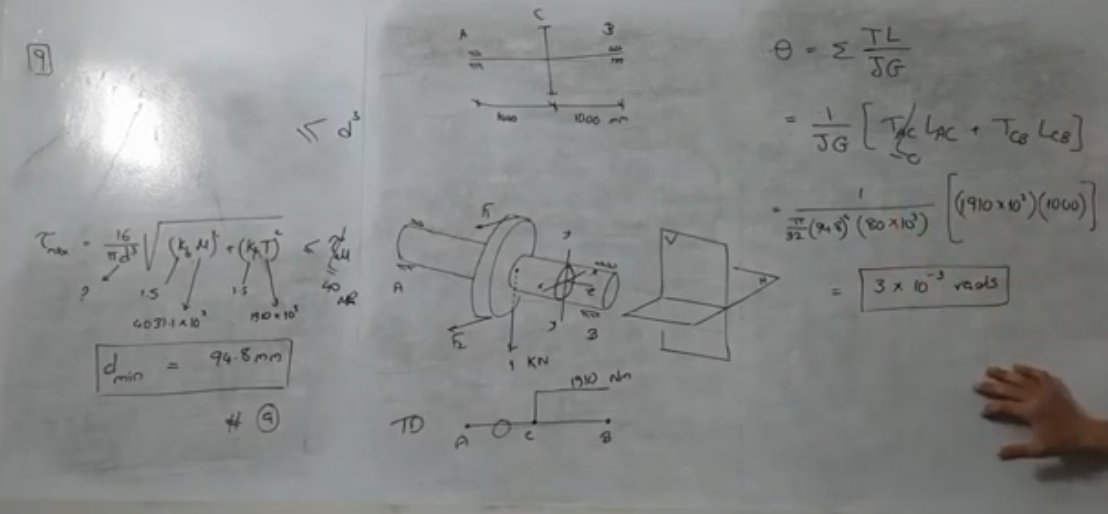

Calculating Angle of Twist

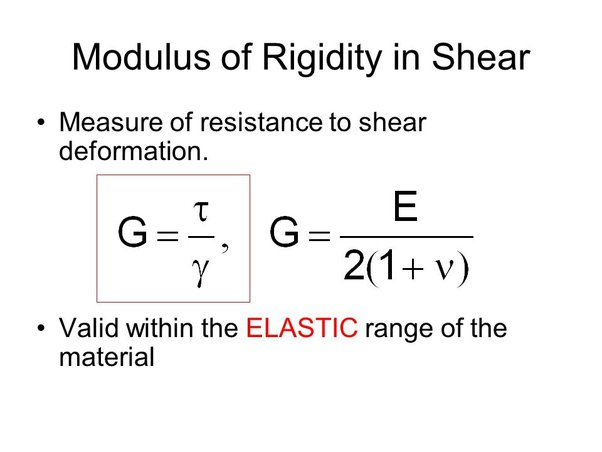

Modulus of Rigidity

200-210 GPa → Steel 120 GPa → Cast Iron

Link to original

---

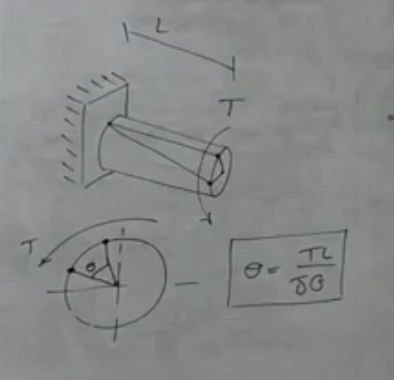

44:36 Angle of Twist

---
