Tutorial 3 - Stress Part 1

---

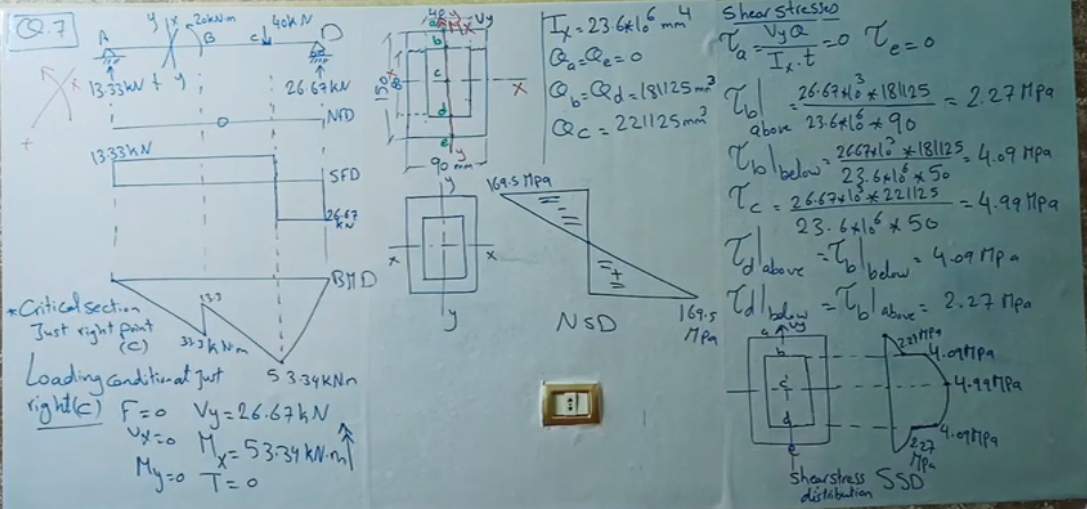

02:46 Problem 1

• Critical Section is a section that has maximum Bending Moment because it causes more stresses and is thus more critical
• When calculating Loading Conditions at a section, make sure to label axes on the structure to label loads appropriately
• Bending moment/Normal force ⇒ Normal stress
• Shear force/Torque ⇒ Shear Stress

---

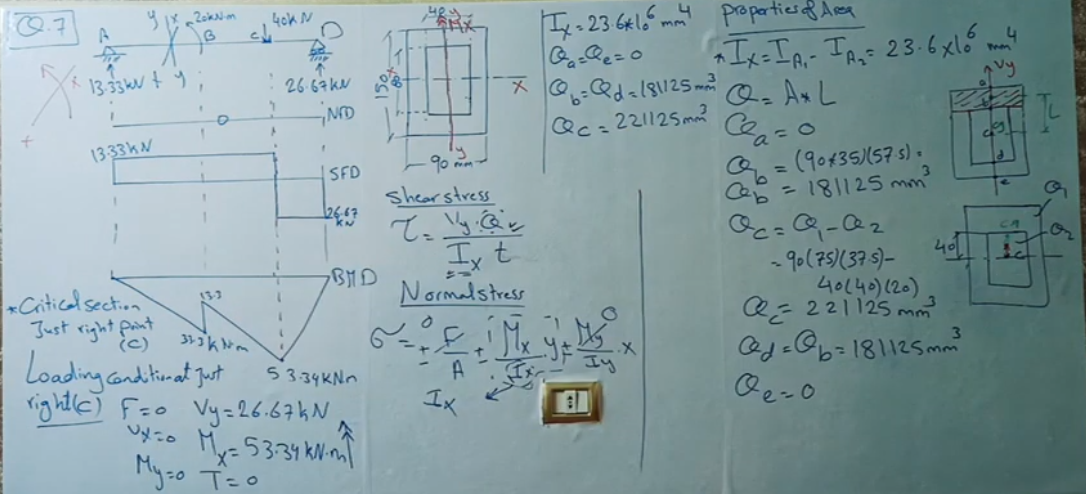

17:28 Calculating First Moment of Area

$Q=A\times L$

---

26:39 Properties of Area Calculated

---

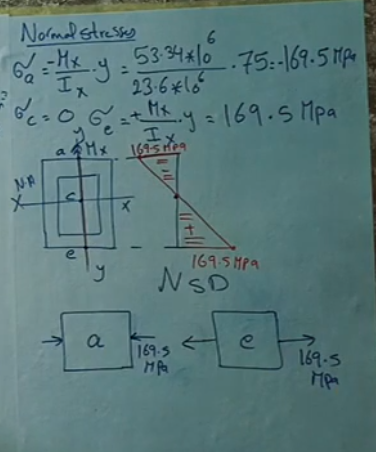

33:30 Normal Stress - Drawing Normal Stress Distribution

---

40:02 Normal Stress Distribution and State of Stress of an Element

Structure > Section > Element

Stress and Loading Diagrams

• Structure → Loading Diagrams
• Section → Loading Conditions
• Element → State of Stress

---

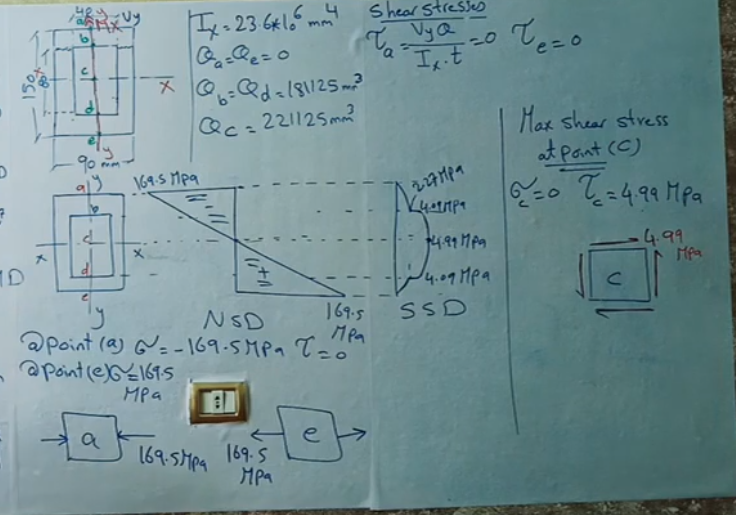

40:20 Calculating Shear Stress

Calculate at:

• Start/End/Centroid/Change in thickness
• Above/Below

---

01:01:47 State of Stress

---
