Lab 3 - Aero Kit Rotor Speed Control

Scripts

Code snippet for calculating gains according to requirements

% Proportional gain (V.s/rad)

kp = (2*zeta*wn*tau-1)/(K)

% Integral gain (V/rad)

ki = wn^2*tau/K

Models

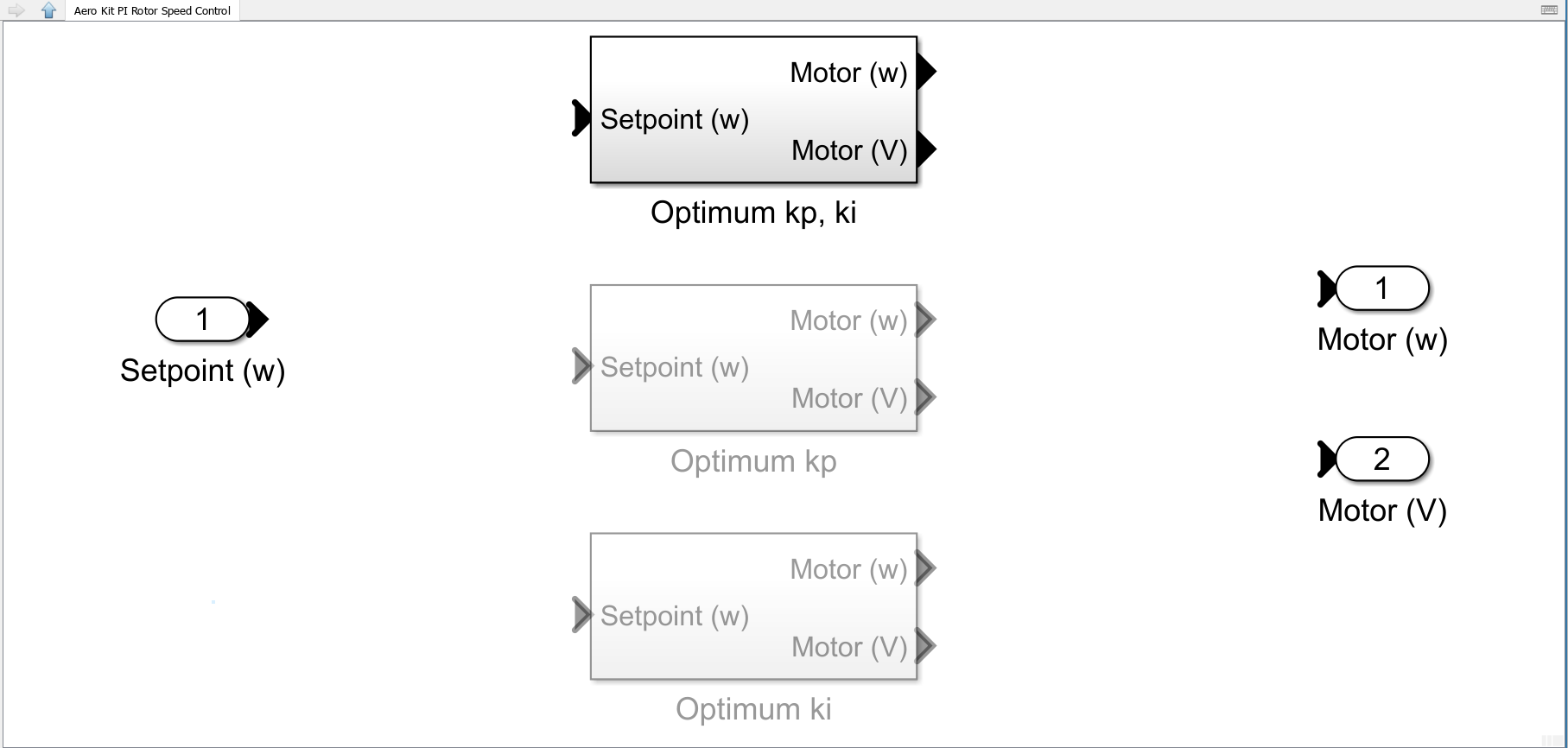

Variant Subsystem Block

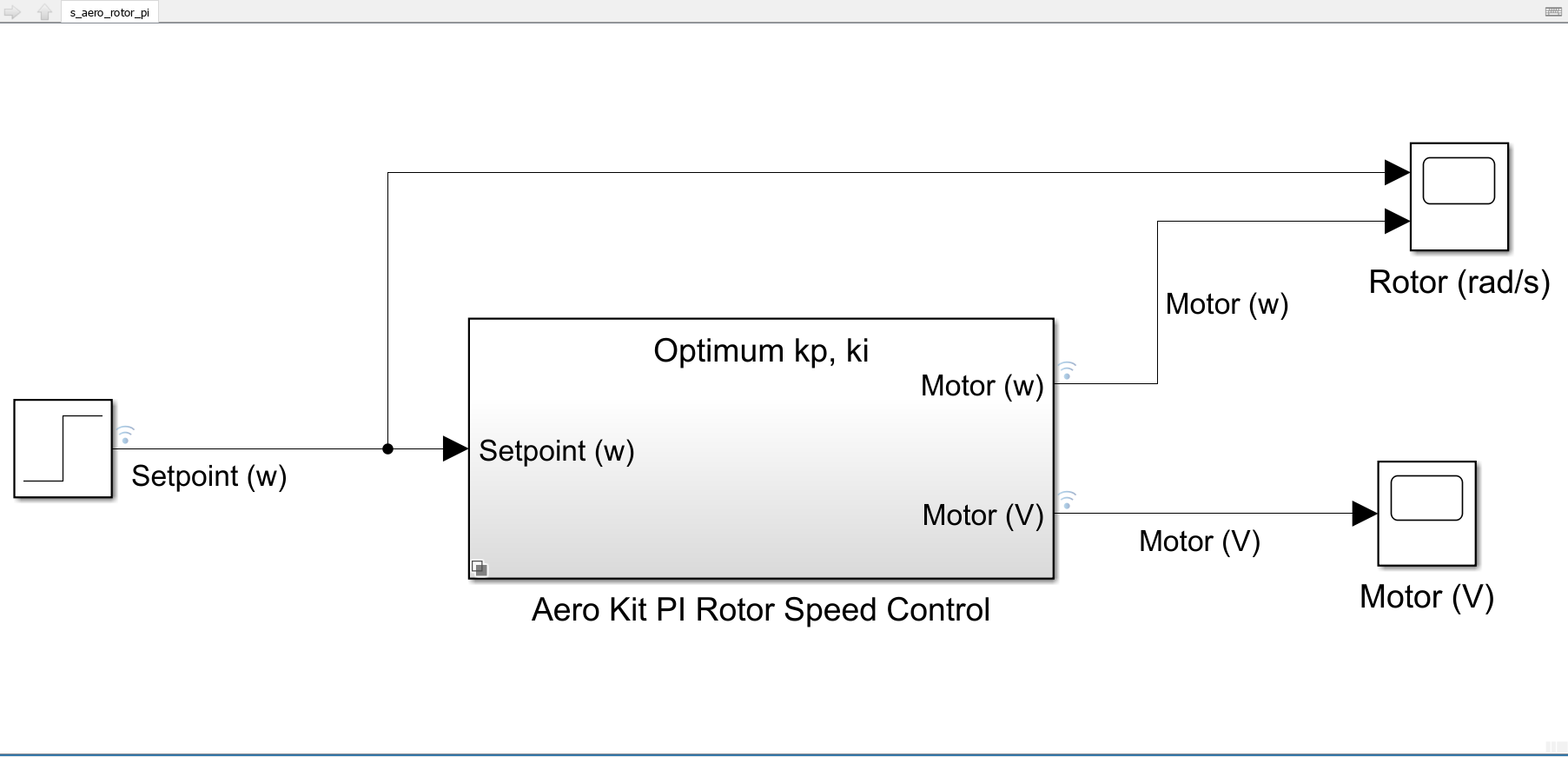

Subsystems

Results

Given Parameters

K = 19.0; % dc gain
tau = 0.165; % time constant
tp = 0.3; % peak time (s)
PO = 5; % percent overshoot (%)

Calculated Parameters

zeta = 0.6901 % damping ratio
wn = 14.4699 % natural frequency
kp = 0.1208 % proportional gain
ki = 1.8183 % integral gain

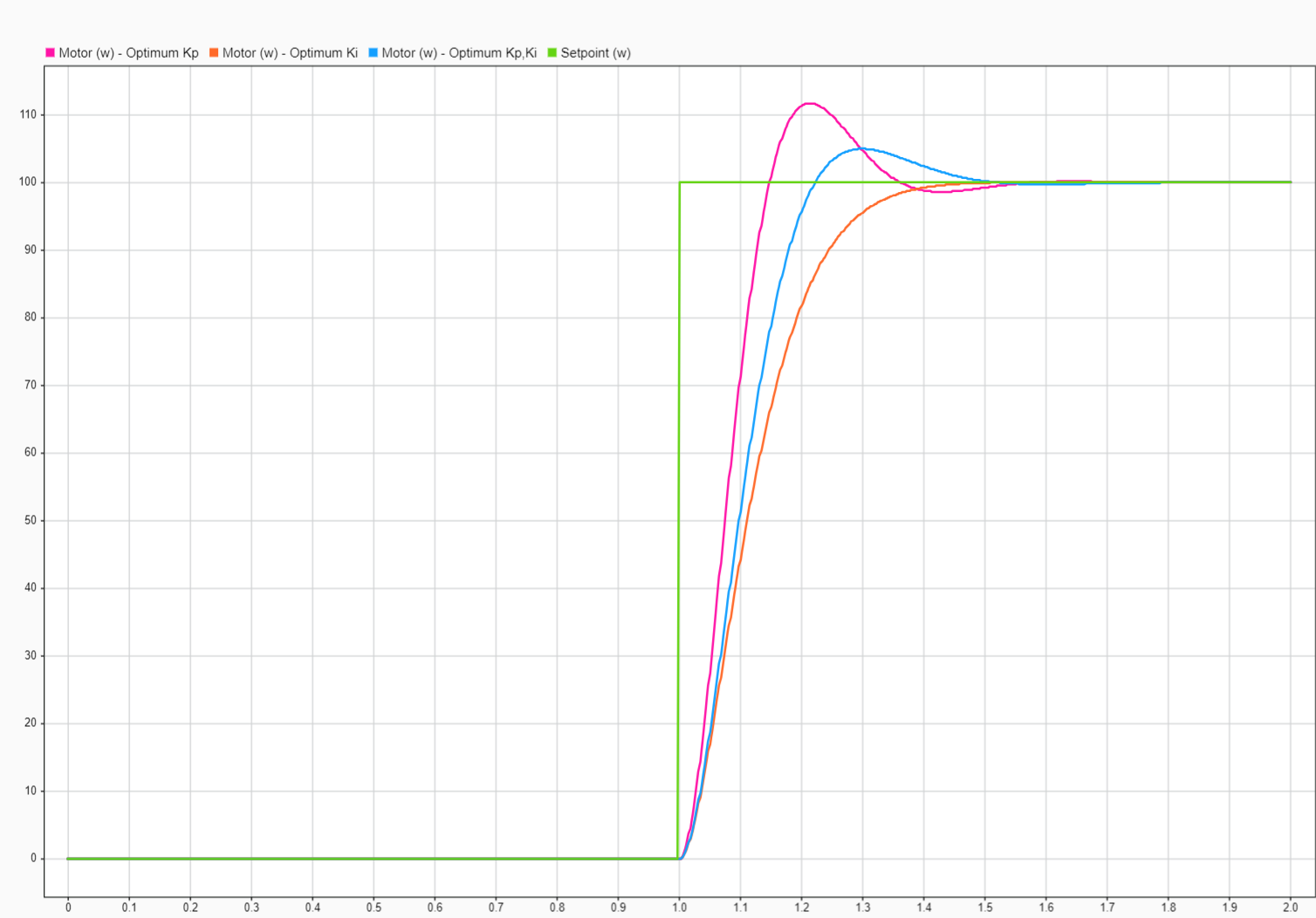

Overview

Using $k_p$ and $1.5k_i$

tp = 0.22; % peak time (s)
PO = 11.7; % % percent overshoot (%)

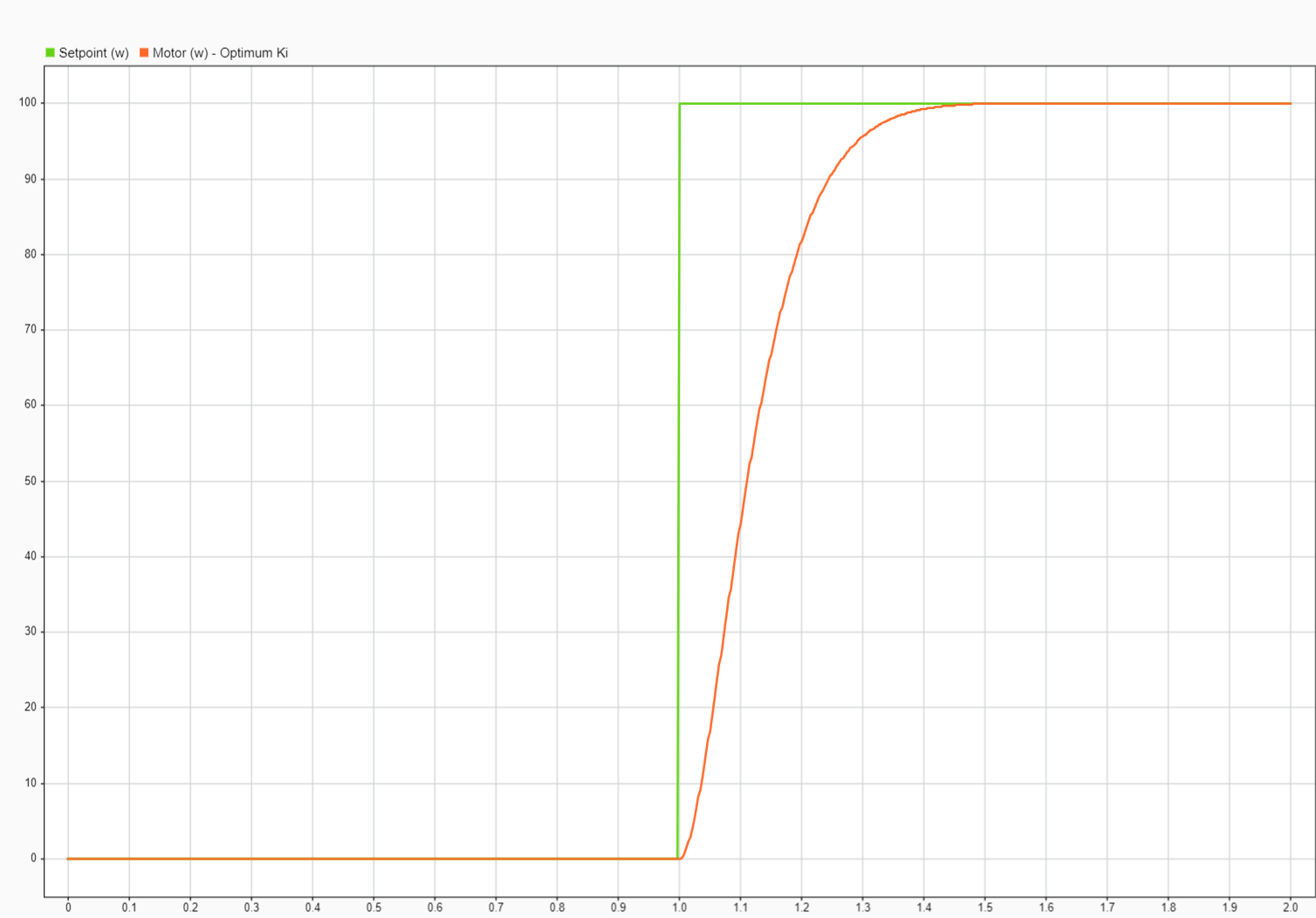

Using $1.5k_p$ and $k_i$

System is not underdamped

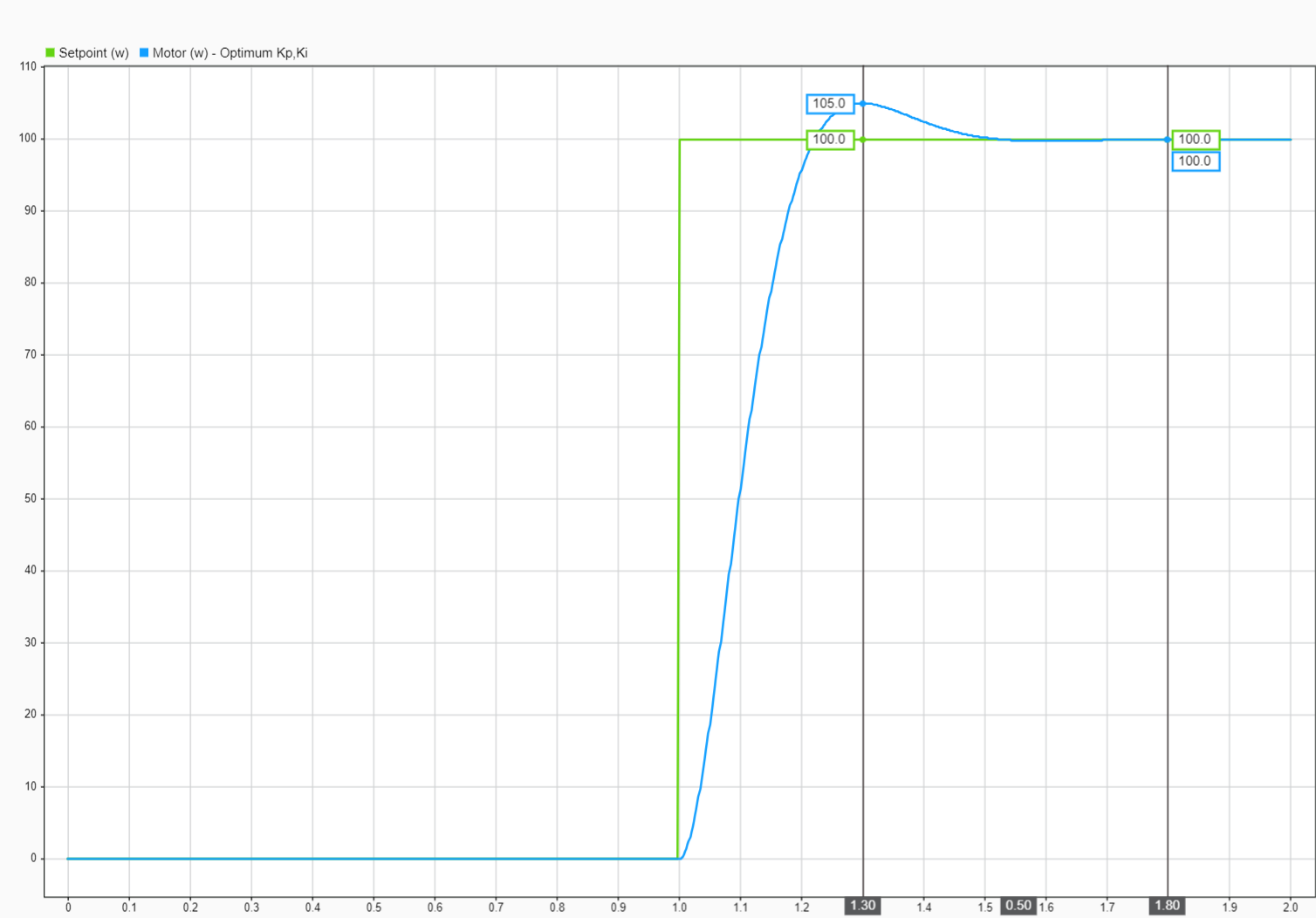

Using $k_p$ and $k_i$

tp = 0.3; % peak time (s)
PO = 5; % percent overshoot (%)

Conclusion

• Requirements satisfied
• Best peak time comes from using $1.5k_i$, but overshoot becomes significantly worse
• System did not become underdamped when using $1.5k_p$

Assets

Project Files and Demo Video
